Content

products

profile

Mounting
Screw
Side Clearance
1/2” plus 1/32”, minus 0 each side.
height
1-15/32” (37.5 mm)
Loading
75 lb (34kg)

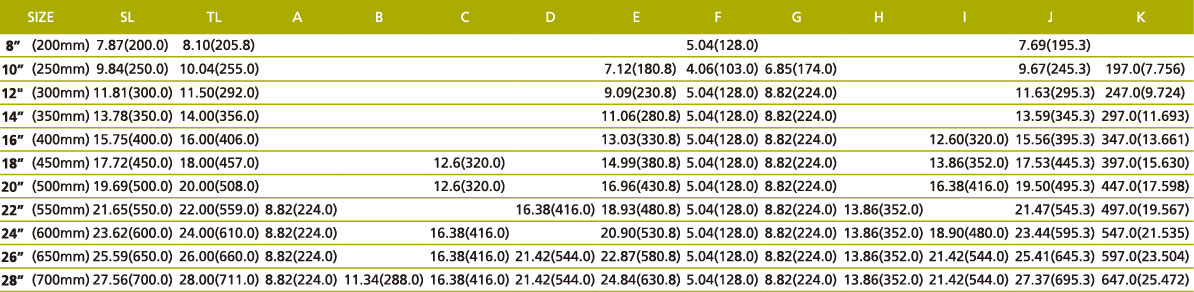

Size
10,12,14,16,18,20,22,24,26,28 inch
feature
Non-handed design. 32 mm hole pattern, Quick lever disconnect for easy drawer removal. Hold-in feature to prevent bounce back. Cabinet member breathing tabs self-adjust to side clearance.
surface Treatment
  • Clear Zinc
  • Black Zinc
  • GI
  • Powder coating on drawer frame
Option
Packaging
  1. 20 pairs individually poly-packaged no screws.

Quick Installation Guide

NJ-31A02 Medium Duty Slides,
