Mounting
Screw
Side Clearance
3/4 inch(19.0mm) plus 1/64 inch, minus 0 each side.
height
2-7/64 inch
Loading
200 lb (90kg)

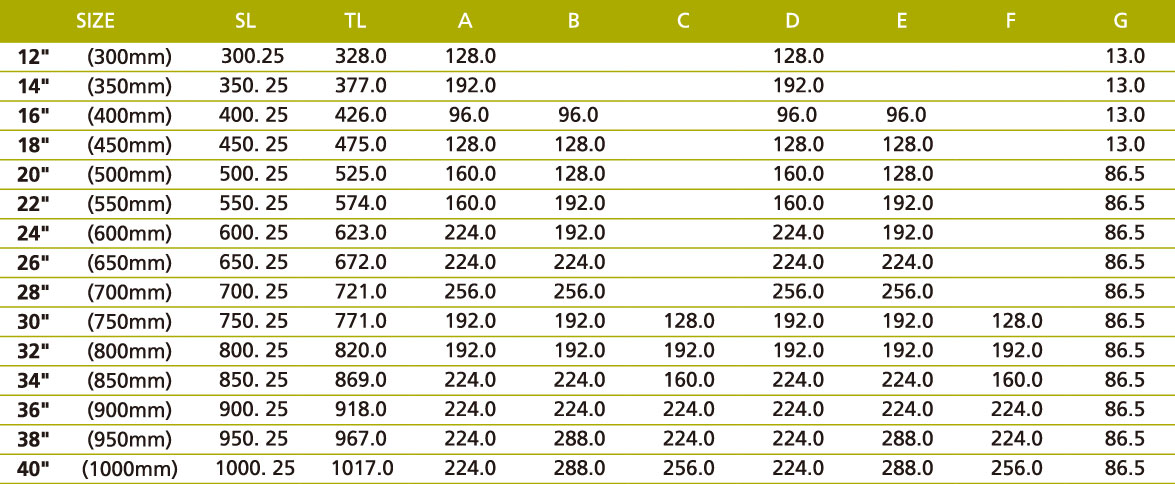

Size
300,350,400,450,500,550,600,650,700,750,800,850,900,950,1000 mm
feature
32mm hole pattern hold/close function to prevent bounce back,Overtravel.
surface Treatment
  • Clear Zinc
  • Black Zinc
  • GI
  • Powder coating on drawer frame
Option
Self-closing.
Packaging
  1. 10 pairs individually poly-Packaged, no screws

Quick Installation Guide

NJ-76008 Full Extension Slides,
