products

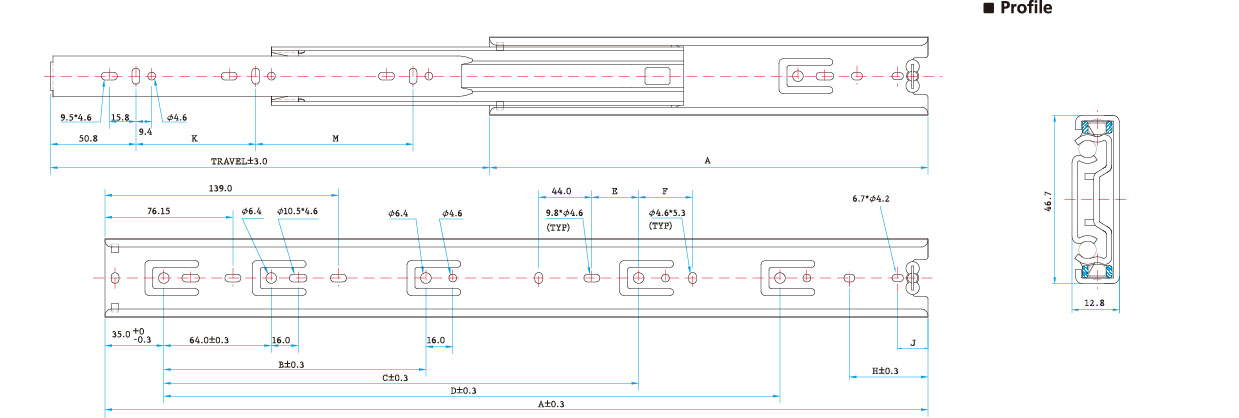

profile

Mounting
Screw
Side Clearance
12.8mm plus 0.8mm, minus 0 mm each side.
height
1-27/32 inch(46.7mm)
Loading
130 lb (60kg)
Size
12,14,16,18,20,22,24,26,28 inch
feature
32 mm hole pattern, Simple access mounting on drawer and cabinet members, Breathing tabs self adjust to side clearance. Hold/close function. Lever disconnect for drawer removal.
surface Treatment
  • Clear Zinc
  • Black Zinc
  • GI
  • Powder coating on drawer frame
Option
1 inch over-travel.
Packaging
  1. 15 pairs individually poly-Packaged, no screws

Quick Installation Guide

NJ-81001 Full Extension Slides,
