products

profile

Mounting
Screw
Side Clearance
12.7mm plus 0.76mm, minus 0mm.
height
54.5mm
Loading
130 lb (60kg)
Size
350,400,450,500,550,600 mm
feature
Brand new dampening design, no hassle of grease leaking or drawer bounce. 50mm self close stroke, extremely light and silent movement, heavy duty loading with less deflection.
surface Treatment
  • Clear Zinc
  • Black Zinc
  • GI
  • Powder coating on drawer frame
  • Anodizing
Option
Screw head must be completely flush or under the slide member.
Packaging
  1. 10 pairs per box individually poly-packaged, no screws

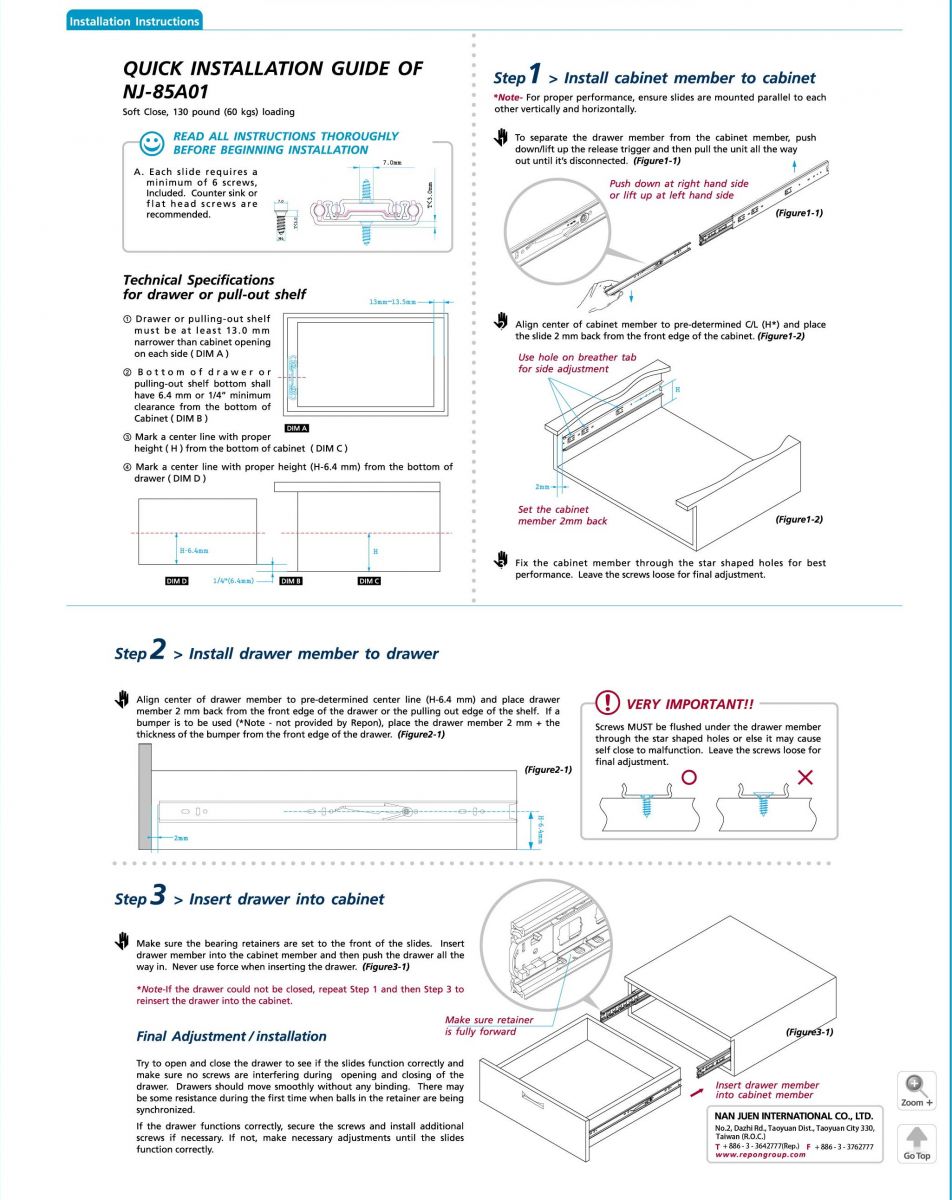

Quick Installation Guide

NJ-85A01 Soft Close Slides,
